KAN tracheostomy tube with cuff, fenestrated
- KAN tube made of thermosensitive PVC
- perfectly matched transparent tube and inner cannulas
- high volume cylindrical-shape cuff with thin walls
- concentric fenestrated holes
- soft flanges with joint hitch
- bayonet joint
- colour coded
- facilitates cleaning and disinfection of cannulas
- obturator with perforation for Seldinger guide
- DOP free, latex free
- sterile
Set 1

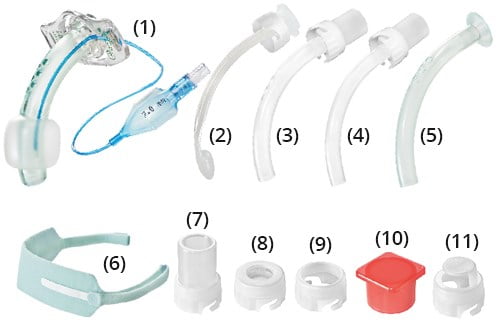

Set components:
- KAN tube with cuff, fenestrated (1)
- obturator (2)
- 1 inner cannula with 15 mm connector fenestrated (3)
- 1 inner cannula with 15 mm connector, non-fenestrated (4)
- 1 inner cannula with collar, fenestrated (5)
- soft tracheostomy tube holder (6)
- 15 mm connector (7)
- speaking valve (8)
- connecting plug (9)
- decannulation cap (10)
- protective plug (11)
| size I.D. [mm] | colour | tube O.D. [mm] | cannula I.D. [mm] | lenght L [mm] | tube I.D. [mm] | bending angle [°] | ref. |
|---|---|---|---|---|---|---|---|
| 5.0 |  | 10.6 | 5.0 | 62 | 6.5 | 115 | 48-5010 |
| 6.0 |  | 11.7 | 6.0 | 70 | 7.5 | 110 | 48-6010 |
| 7.0 |  | 12.8 | 7.0 | 72 | 8.5 | 105 | 48-7010 |
| 8.0 |  | 13.8 | 8.0 | 80 | 9.5 | 100 | 48-8010 |
| 9.0 |  | 14.8 | 9.0 | 82 | 10.5 | 95 | 48-9010 |
| 10.0 | | 15.8 | 10.0 | 84 | 11.5 | 90 | 48-1010 |
Set 2

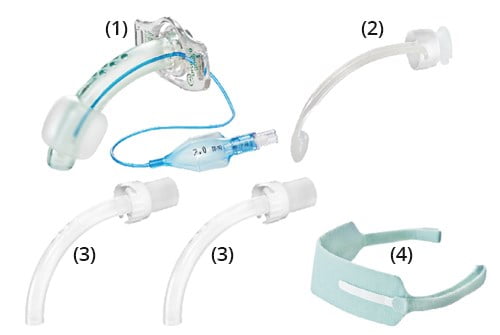

Set components:
- KAN tube with cuff (1)
- obturator (2)
- 2 inner cannulas with 15 mm connector (3)
- soft tracheostomy tube holder (4)
| size I.D. [mm] | colour | tube O.D. [mm] | cannula I.D. [mm] | lenght L [mm] | tube I.D. [mm] | bending angle [°] | ref. |
|---|---|---|---|---|---|---|---|
| 5.0 | | 10.6 | 5.0 | 62 | 6.5 | 115 | 48-5011 |
| 6.0 | | 11.7 | 6.0 | 70 | 7.5 | 110 | 48-6011 |
| 7.0 | | 12.8 | 7.0 | 72 | 8.5 | 105 | 48-7011 |
| 8.0 | | 13.8 | 8.0 | 80 | 9.5 | 100 | 48-8011 |
| 9.0 | | 14.8 | 9.0 | 82 | 10.5 | 95 | 48-9011 |
| 10.0 | | 15.8 | 10.0 | 84 | 11.5 | 90 | 48-1011 |
