Inner Cannulas
KAN Tracheostomy Tube with Cuff
- KAN tube made of thermoplastic PVC
- inner cannulas perfectly fitted to the tube
- low-pressure, high-volume, thin-walled cylindrical cuff
- soft shield with articulated hook
- bayonet connectors
- color-coded sizes
- ability to wash and disinfect cannulas
- introducer with olive tip and opening for Seldinger guide wire
- latex-free, phthalate-free
- sterile

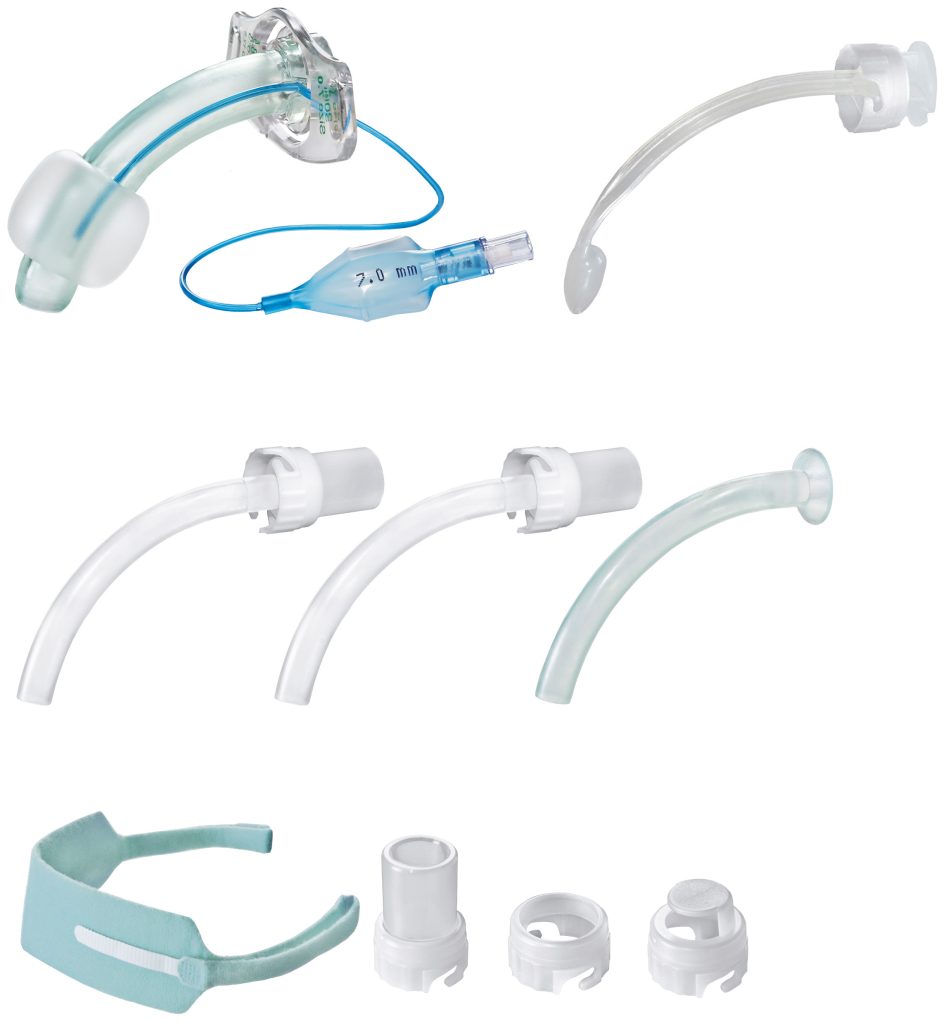

Set 1
Kit contents:
- KAN tracheostomy tube with cuff (1)
- guide (2)
- 2 inner cannulas with 15 mm connector (3)
- 1 inner cannula with flange (4)
- soft securing tape (5)
- 15 mm connector (6)
- connecting cap (7)
- cosmetic cap (8)

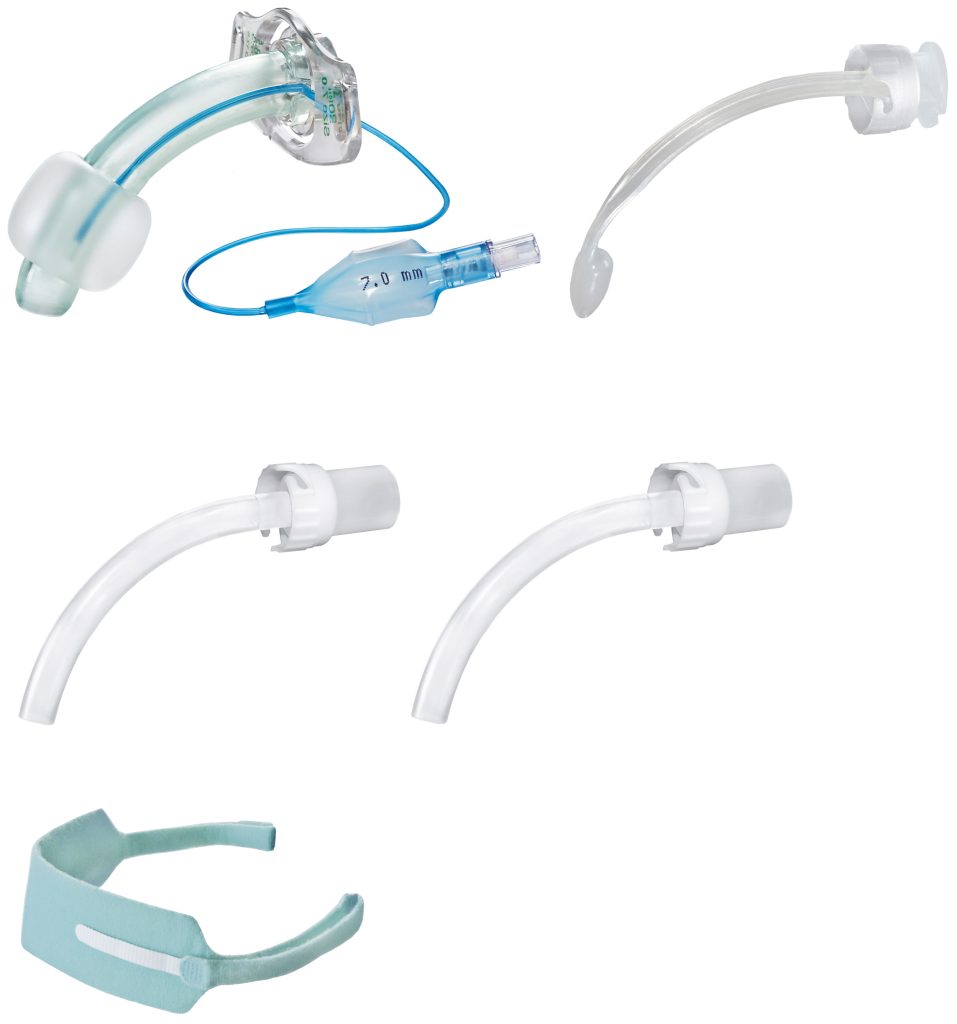

Set 2
Kit contents:
- KAN tracheostomy tube with cuff (1)
- guide (2)
- 2 inner cannulas with 15 mm connector (3)
- soft securing tape (4)
or use the contact form
| size I.D. [mm] | colour | Ø outer tube O.D. [mm] | Ø inner cannula I.D. [mm] | length L [mm] | Ø inner tube I.D. [mm] | bending angle [°] | Ref. No. |
|---|---|---|---|---|---|---|---|
| 5.0 |  |
10.6 | 5.0 | 62 | 6.5 | 115 | 48-5000 |
| 6.0 |  |
11.7 | 6.0 | 70 | 7.5 | 110 | 48-6000 |
| 7.0 |  |
12.8 | 7.0 | 72 | 8.5 | 105 | 48-7000 |
| 8.0 |  |
13.8 | 8.0 | 80 | 9.5 | 100 | 48-8000 |
| 9.0 |  |
14.8 | 9.0 | 82 | 10.5 | 95 | 48-9000 |
| 10.0 | |
15.8 | 10.0 | 84 | 11.5 | 90 | 48-1000 |
